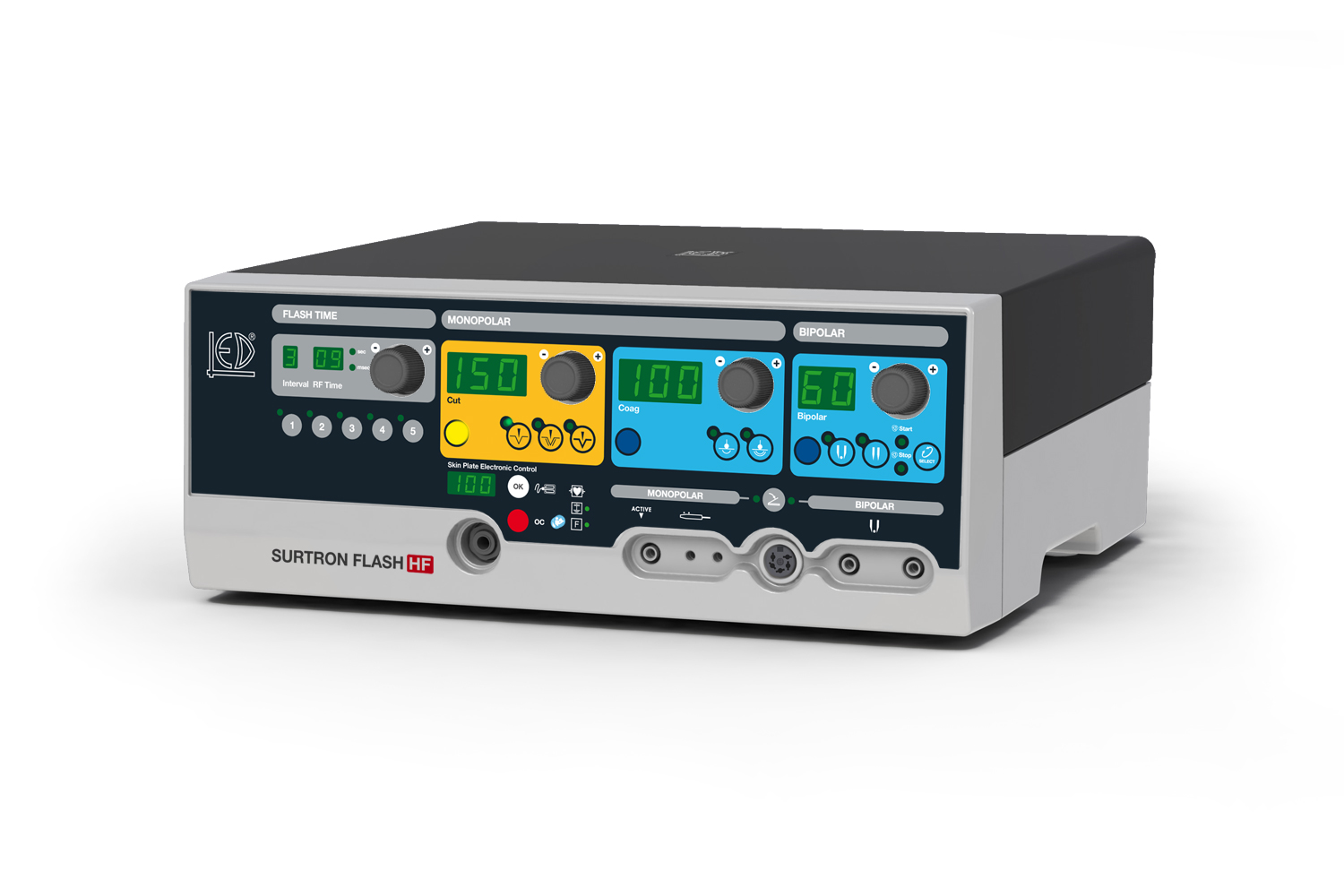

SURTRON
SURTRON is a high frequency electrosurgical equipment which is suitable to light and medium surgery.
SURTRON, through its performance, allows pure CUT, cut-coagulation BLEND, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG and, with a special adapter, BIPOLAR coagulation. The digital reading of delivered power and the monitoring of operative function by microcontroller guarantees the absolute reliability of working conditions.
SURTRON allows a highly professional surgery thanks to the user-friendly and safety solutions normally used. The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the monopolar output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
SURTRON 80, 120, 160

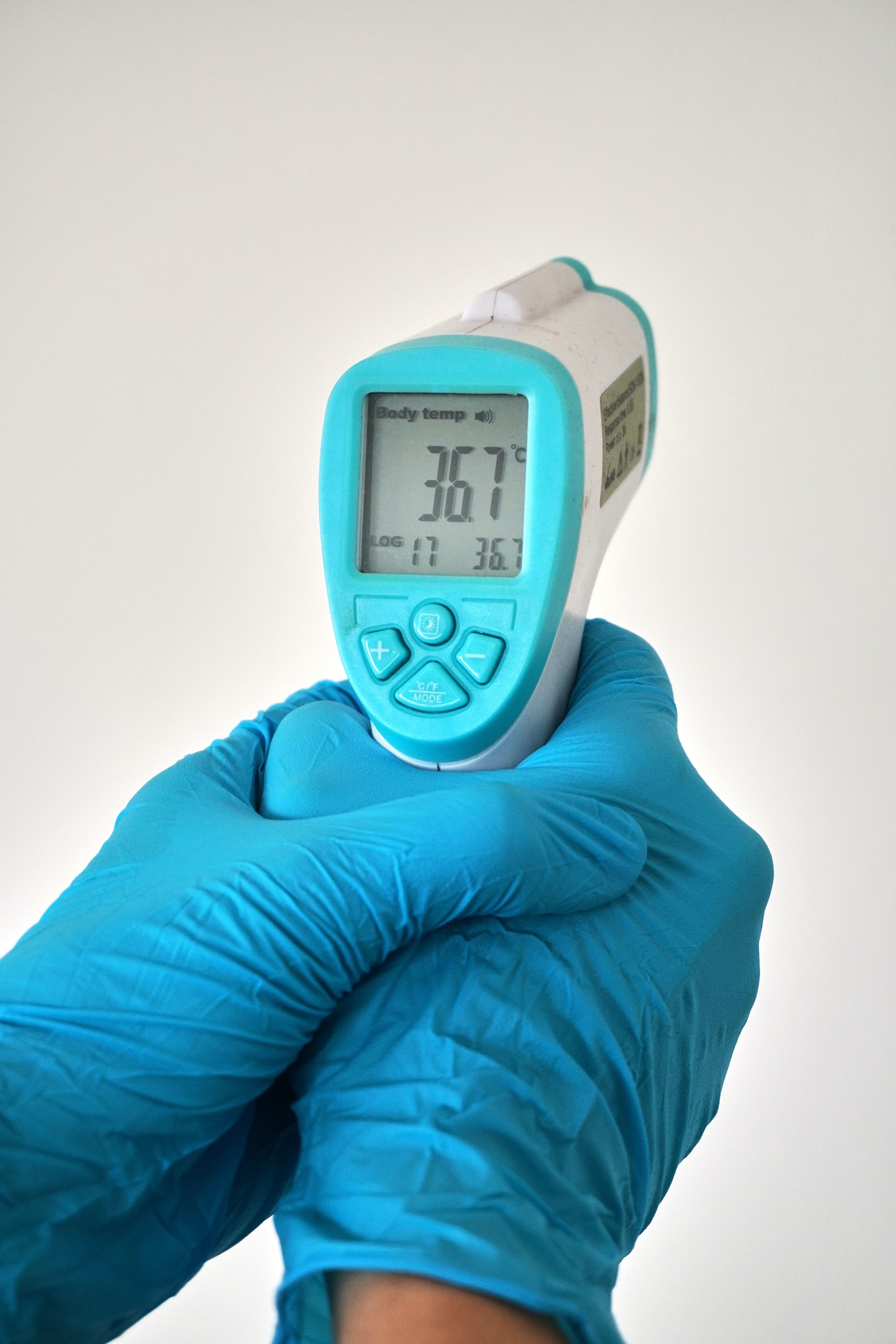

INFRARED THERMOMETER
Model: JRT200
Model: JRT300
Model: JRT400
Specifications: Temperature range: 32-42.9℃ Resolution: 0.1℃ Measure position: Within 2.5cm of measure object Power management: Automatically shut down during waiting Battery: DC3V（2 AAA batteries）
Working and storage conditions: Temperature range: Normal working: 16-35℃ Transportation and storage: -20-55℃ Humidity range: Normal working: ≤85% (Non-condensing)
Transportation and storage: ≤95% (Non-condensing) Atmospheric pressure: Normal working: 700-1060hPa Transportation and storage: 500-1060hPa Maximum allowable error: In the range of 35.0-42.0℃,
Allowable error ± 0.2℃ on the range of less than 35.0℃ and more than 42.0℃, Maximum allowable error ± 0.3℃

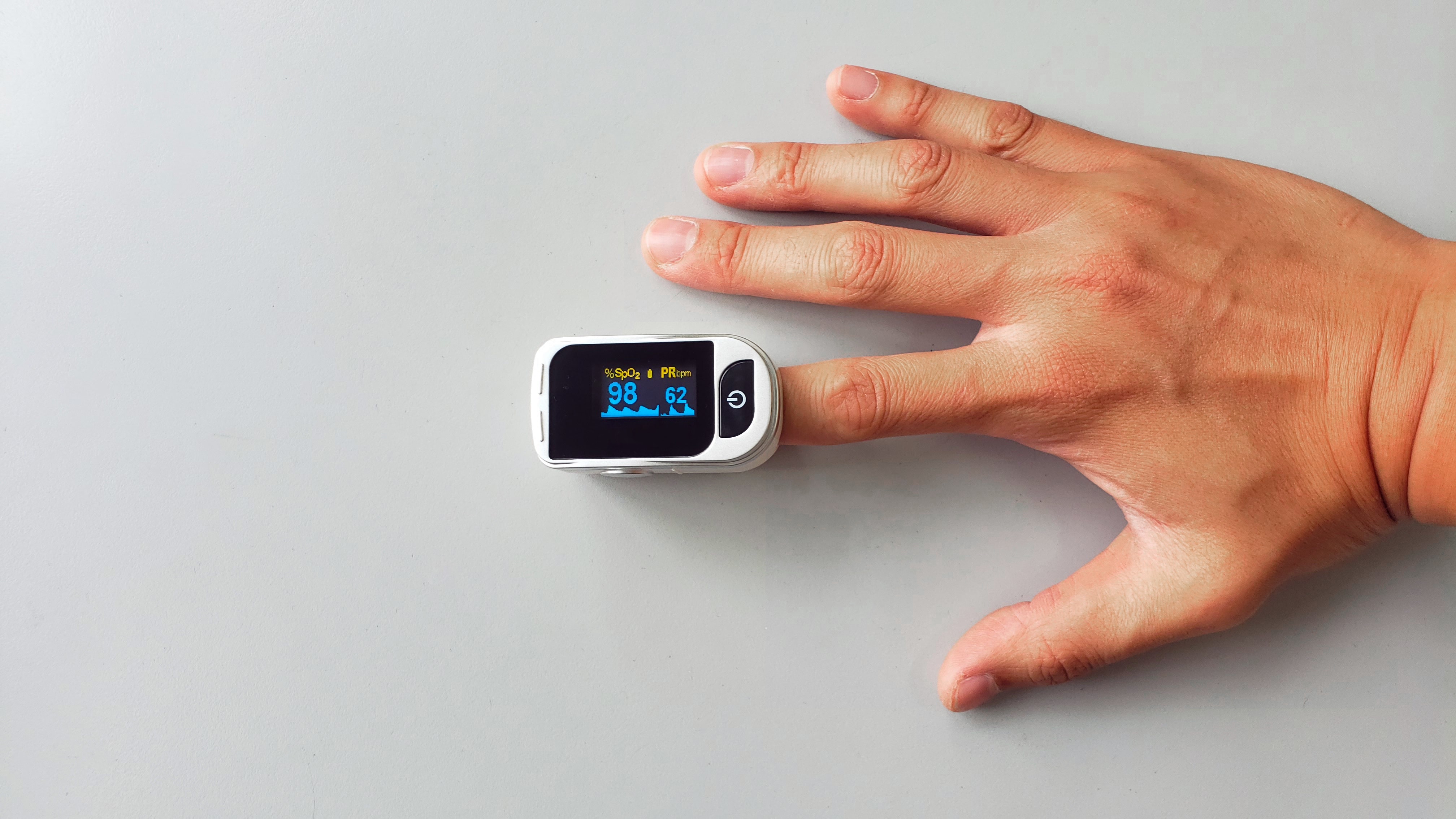

FINGERTIP PULSE OXIMETER
Multi-color TFT display four display modes, big font display, digital and plethysmogram display
Change directions manually according to patient observe needs
Audible alarm, Alarm lamp display and heart rate pluse synchronization
Low power consumption 50 hours charged power
Function of Perfuse Index to better get the pulse oxygen perfusion
Automatic power off when no signal for 8s
Small and light weight, convenient to carry
Technical Specification
Display type: Multi-Colour TFT Display; 1 inch
Spo2 measurement range 35% - 99% PR Measurement range 30 -240 BPM
Resolution plus minus 1% for Spo2 plus minus 1BPM Pulse rate
Accuracy plus minus 1% (90%-99%) ; 70%-89% unspecified <70% for spo2
Low perfusion <0.4%
Power of two alkaline batteries (AAA)
Power consumption <30mA
Automatic power- off
Operation environment
Operation environment 5 – 40 Degrees
Humidity 30%-90%
Air pressure 70kPa-106kPa
Ventilator
Modes
VCV(A/C) PCV(A/C) PRVCSIM(VCV) PRVC SIM(VCV)+PSV
SIMV(PCV)PSV SIMV(PRVC)+PSV SPONT/CRAP+PSV
BIVENT+PSV NIV/CRAP NIV-T NIV-S/T
Parameters
- Tidal Volume:20-2000ml
- Respiration Rate:1-80bpm
- Tinsp:0.2-9 s
- Tpause:0-4 s
- I:E Ratio:1:10-4:1
- Fi0:21%%-100%%
-
Trigger Sensitivity: Pressure(-20-cmH2O,above Peep)
Flow(0.5-20LPM) - PEEP:0-35 cmH2O
- Psupport:0-70
- Pinsp:5-70cmH2O
Technical data
